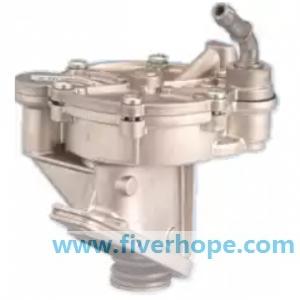

074145100D 9471916 722300030 Vacuum pump VOLVO S60/S80/V70

Part Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy

Ref. Number:  074145100D 9471916 722300030 72230003

Models Applied: VOLVO S60 S80 V70



Condition: Brand new Aftermarket high quality part

What is vacuum pump?

Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.

The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:

•     Brake boosters;
•     Secondary air valves;
•     Exhaust gas recirculation (EGR) valves;
•     Turbocharger controls;
•     Central locking systems
