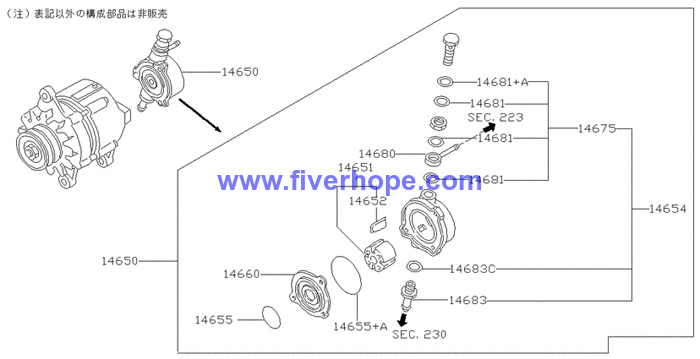

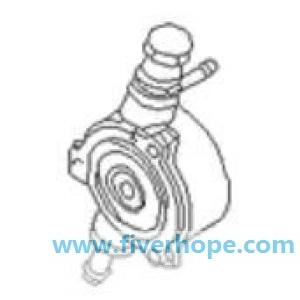

Vacuum pump 14650-02N21 14650-7T40A CARAVAN/HOMY VE24/WE24/DATSUN D21Part Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy
Ref. Number: 14650-02N21, 14650-7T40A
Models Applied: NISSAN
ATLAS/CONDOR F23 1992-2012
CARAVAN/HOMY VE24/WE24 1993-1997
DATSUN D21 1988-2012
MISTRAL R20 1996-2012
TERRANO WD21 1988-2012Engine: TD27
Condition: Brand new Aftermarket high quality part
Features: Customized order is available , based on drawings/samples.
What is vacuum pump?Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.
The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:
- Brake boosters;
- Secondary air valves;
- Exhaust gas recirculation (EGR) valves;
- Turbocharger controls;
- Central locking systems
