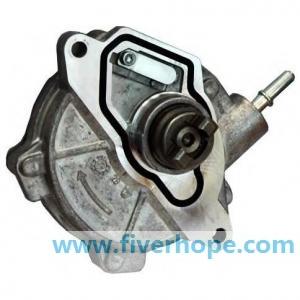

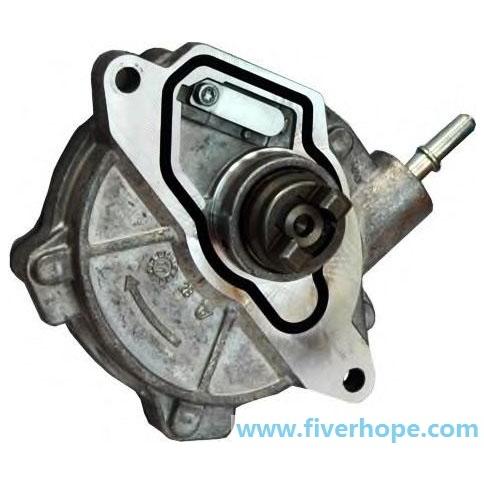

A6402300465 A6402300365 Vacuum Pump for MERCEDES A160/A180/A200/B180/B200Part Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy
Ref. Number: A6402300465, A6402300365, A6402300265, 7.24807.37.0
Models Applied: MERCEDES-BENZ
MERCEDES-BENZ A160/A180/A200(W169) 2004-2012;
MERCEDES-BENZ B180/B200(W245) 2005-2011
Engine:
Condition: Brand new Aftermarket high quality part
Features: Customized order is available , based on drawings/samples.
What is vacuum pump?Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.
The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:
- Brake boosters;
- Secondary air valves;
- Exhaust gas recirculation (EGR) valves;
- Turbocharger controls;
- Central locking systems
