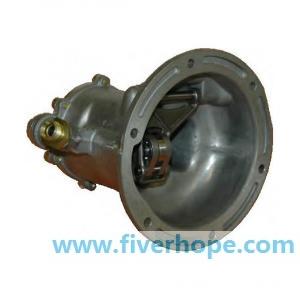

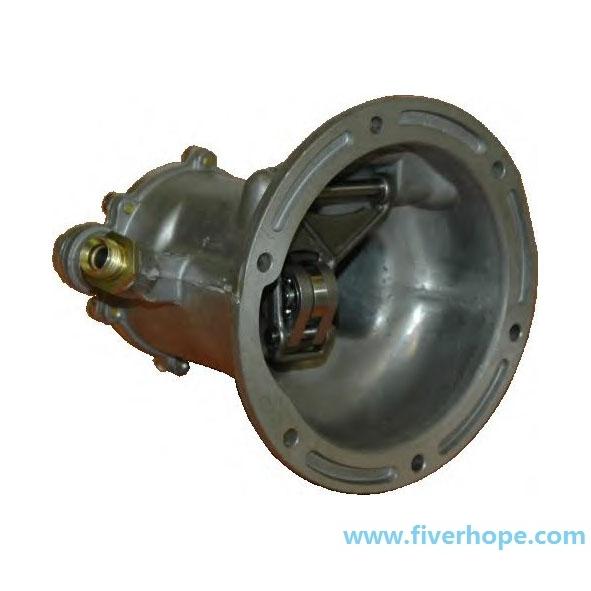

Vacuum Pump A0002301365 A000230136580 for G-CLASS W460/T1 BusPart Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy
Ref. Number: A0002301365, A000230136580, 7.20547.50.0
Models Applied: MERCEDES-BENZ
MERCEDES-BENZ Saloon (W123)197601 - 198512
MERCEDES-BENZ KOMBI Break (S123)197709 - 198512
MERCEDES-BENZ COUPE (C123)197703 - 198512
MERCEDES-BENZ G-CLASS (W460)197903 - 199308
MERCEDES-BENZ T1 Bus (601)197705 - 199602
MERCEDES-BENZ T1 Flatbed / Chassis (601)197701 - 199602
MERCEDES-BENZ 100 Bus (631)198802 - 199602
MERCEDES-BENZ T1 Box (601)197705 - 199602
Engine:
Condition: Brand new Aftermarket high quality part
Features: Customized order is available , based on drawings/samples.
What is vacuum pump?Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.
The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:
- Brake boosters;
- Secondary air valves;
- Exhaust gas recirculation (EGR) valves;
- Turbocharger controls;
- Central locking systems
