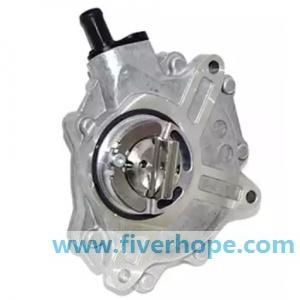

Vacuum Pump 11668502656 11667534236 11667542498 for BMW 118i/120i/316i

Part Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy

Ref. Number:   11668502656, 11667534236, 11667542498, 11667635656, 11668482284, 11667502656

Models Applied: BMW

BMW 118i/120i(E87) 2003-2013;

BMW 120i(E88) 2010-2013
BMW 120i(E82) 2009-2013;

BMW 316i(E46) 2002-2005
BMW 316ti/318ci/318i(E46) 2001-2007;

BMW X3(E83) 2005-2008
BMW X1(E84) 2010-2015;

BMW Z4 Roadster(E85) 2005-2009
BMW 318i/320i(E90) 2004-2010;

BMW 318i/320i(E91) 2005-2012
BMW 320i(E92) 2006-2007;

BMW 320i(E93) 2007-2013

Engine:

Condition: Brand new Aftermarket high quality part

Features: Customized order is available , based on drawings/samples.

What is vacuum pump?

Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.

The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:

•     Brake boosters;
•     Secondary air valves;
•     Exhaust gas recirculation (EGR) valves;
•     Turbocharger controls;
•     Central locking systems
