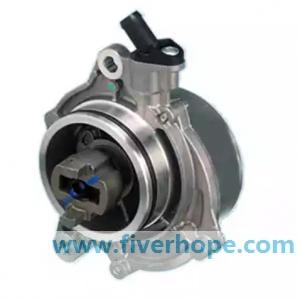

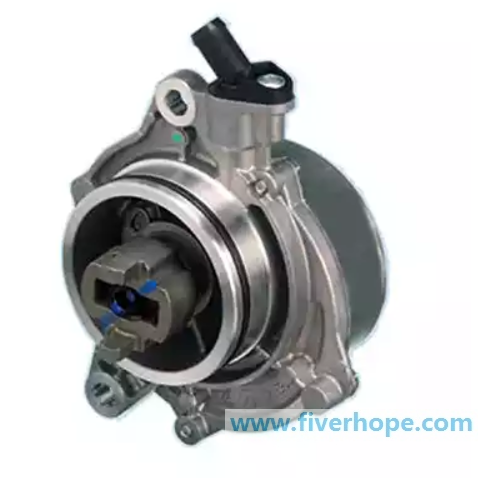

Brake Vacuum Pump 11667791232 for BMW X5(E70)/X3

Part Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy

Ref. Number:   11667791232

Models Applied: BMW

BMW 118d/120d(E81) 2006-2011;

BMW 520d(E81) 2006-2009
BMW X5(E70) 2007-2008;

BMW X3(E83) 2004-2008
BMW 118d/120d(E87) 2003-2011

Engine:

Condition: Brand new Aftermarket high quality part

Features: Customized order is available , based on drawings/samples.

What is vacuum pump?

Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.

The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:

•     Brake boosters;
•     Secondary air valves;
•     Exhaust gas recirculation (EGR) valves;
•     Turbocharger controls;
•     Central locking systems
