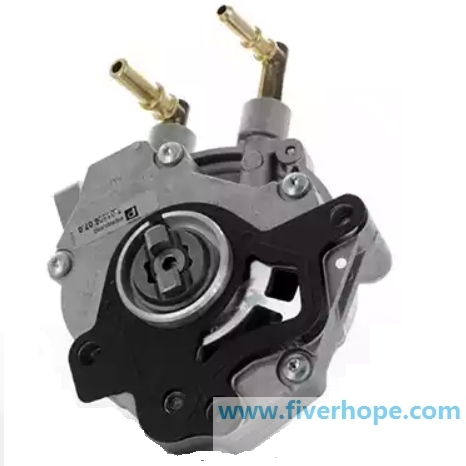

Vacuum Pump LR013526 LR023936 RANGE ROVER III/DISCOVERY IV

Contact Us:

fiverhope1@gmail.com

Tel: 0086-15086654540

Skype: dantes-liu

Product Descriptions

Part Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy

Ref. Number:   LR013526, LR023936

Models Applied: LAND ROVER

LAND ROVER RANGE ROVER III (LM)  2002 -2012
LAND ROVER RANGE ROVER SPORT (LS)  2005 -2013
LAND ROVER DISCOVERY IV (LA) 2009/09-

Engine:

Condition: Brand new Aftermarket high quality part

Features: Customized order is available , based on drawings/samples.


What is vacuum pump?

Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.

The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:

  •     Brake boosters;
  •     Secondary air valves;
  •     Exhaust gas recirculation (EGR) valves;
  •     Turbocharger controls;
  •     Central locking systems
