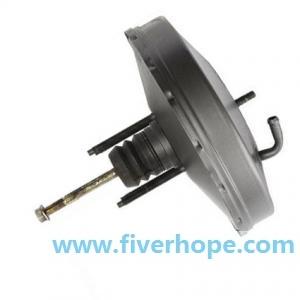

Booster Vacuum Power Brake 8970219410 8970219411 8970219412 fits ISUZU TFR PICKUP/AMIGO 1990Part Name : Booster, Vacuum Power Brake ; Master VAC Assembly
Part #. :8-97021-941-0, 8-97021-941-1, 8-97021-941-2, 8-97021-297-0, 8-97021-297-1 , 54-74601 834-05202 834-05212 834-05217
Conditions: Brand new, High Quality
This Part Fits:
ISUZU TFR PICKUP / AMIGO 1990.09-1994.07 ENGINE: 4ZC1 ENGLR9,4ZD1 ENGLW3,4ZE1 RLJ, 22LE/C22NE, RJT,20SE
Remarks:
Custom design is available(based on drawings or sample).
What is Brake Booster and its function in vehicle ?
The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.
When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
