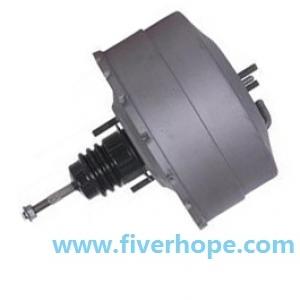

Booster Vacuum Power Brake 8941732281 8941732282 8941732283 fits ISUZU TROOPER 86.5-91Part Name : Booster, Vacuum Power Brake ; Master VAC Assembly
Part #. :8-94173-228-1 , 8-94173-228-2 , 818-05226 818-05229 ,8-94148-801-0 , 813-05406 ,8-94173-228-0 , 818-05221, 818-05226, 8-94173-228-3
Conditions: Brand new, High Quality
This Part Fits:
ISUZU TROOPER 86.5-91
ISUZU TROOPER C223 DIESEL ENG 84-91
Remarks:
Custom design is available(based on drawings or sample).
What is Brake Booster and its function in vehicle ?
The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.
When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
