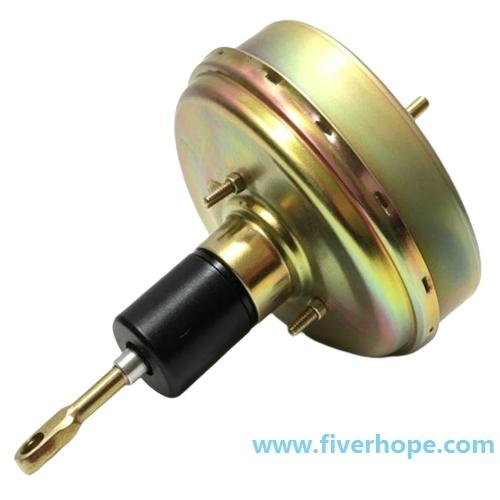

Vacuum Booster 9945763 for Fiat 1V Brava BZ DS 1997-1998

Part Name : Booster, Vacuum Power Brake ; Master VAC Assembly, Servo freno
Part #.: 9945763, B18F0224, 204125444, 204125724, 204125436, 9948317, 9945761

Conditions: Brand New, High Quality

This Part Fits:
Fiat 1V Brava BZ DS 1997-1998
Fiat 1U Bravo BZ DS 1997-1998
Fiat PC Coupe 1994-1996
Fiat PX Coupe Gamma 1996-2000
Fiat PT Marea Benzina 1996-1999
Fiat NZ Tempra MAQ.93 1750-2000
Fiat NJ Tempra MQ.93 D-TD 1993-1996
Fiat NG Tipo 1750-2000 1990-1993
Fiat NT Tipo MAQ.93 D-TD 1993-1995
Fiat NS Tipo MQ.93 1370-1580 1993-1995
Fiat NU Tipo MQ.93 1750-2000 1993-1995
Alfa Romeo U1 145 DS 1994-1996
Alfa Romeo T5 145 Gamma 97 1997-1999
Lancia RY Dedra Benzina 1989-1994
Lancia SL Dedra FL 1994-1999
Lancia SM Dedra FL 1995-1999



Remarks:
Custom design is available(based on drawings or sample).



What is Brake Booster and its function in vehicle ?



The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.

When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
