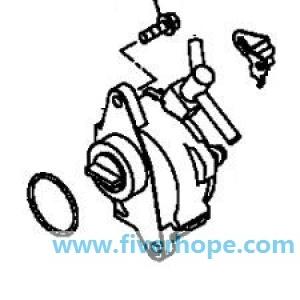

Vacuum pump 2020A027 for MITSUBISHI ASX GA6W/OUTLANDER GF6WPart Name: Brake booster pump, Brake/Alternator vacuum pump, Vacuum pump Assy
Part Number: 2020A027
Models Applied:
MITSUBISHI ASX(G.EXP) GA6W 1800 DIESEL 2011-2012
MITSUBISHI OUTLANDER GF6W 2200DIESEL 2011-2012Engine:
Condition: New Aftermarket high quality part
What is vacuum pump?
Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.
The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.

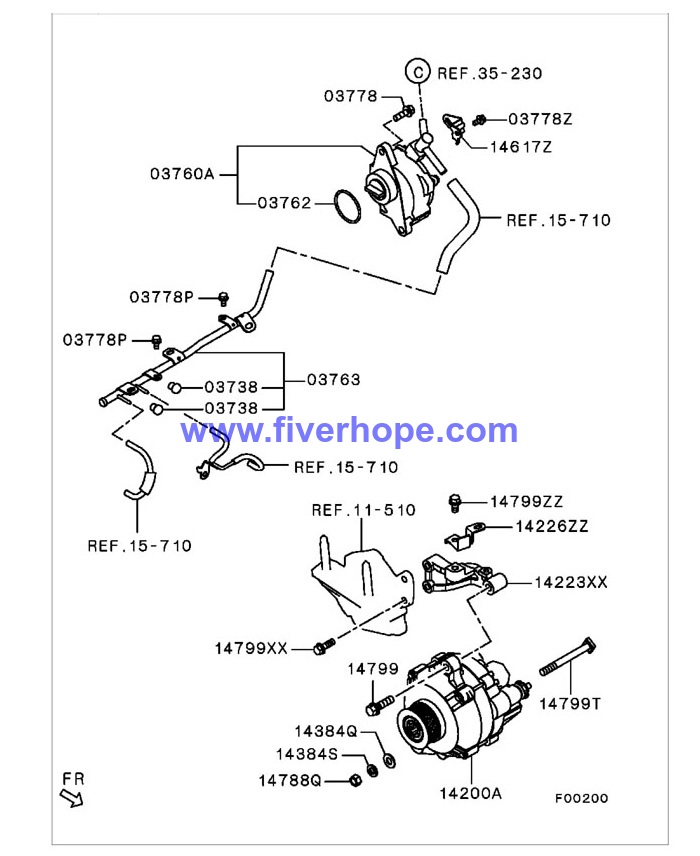

The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:
- Brake boosters;
- Secondary air valves;
- Exhaust gas recirculation (EGR) valves;
- Turbocharger controls;
- Central locking systems
