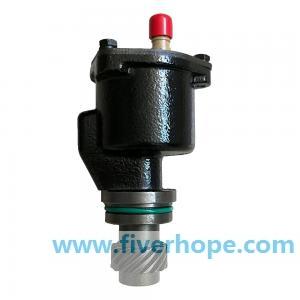

Vacuum pump 068145101A 068145101AX 068145101B for VW SANTANA/TRANSPORTERPart Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy
Ref. Number: 068145101A 068145101AX 068145101B 068145101BX 068145101C 068145101CX 068145101D , 068145101DX, 068145101GX, 068145101G, 068145101EX, 068145101E
Models Applied:
AUDI 80 / 200 / 200 Avant
VW Golf 1985-1986
VW GOLF MK I/ MK II JETTA MK IIVW CARAT PASSAT
VW SANTANA TRANSPORTER MK III
Condition: Brand new Aftermarket high quality part
What is vacuum pump?Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.
The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:
- Brake boosters;
- Secondary air valves;
- Exhaust gas recirculation (EGR) valves;
- Turbocharger controls;
- Central locking systems
