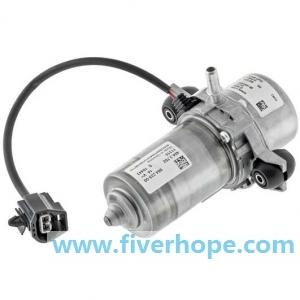

Electric Vacuum Pump 1562264 1676482 for FORDPart Name: Electric Brake Booster Pump, Electric Vacuum Pump assy, Booster Vacuum PumpOEM Number: 1562264, 1676482, 1683961, 1684061, 1684295, 9N512C506BA, AG9N2A451BB, 42574509, 31257655, 31257669, 2102-00212, DONGFENG F690020J-H0100, 3510060E04Refer Number: 8TG009286-001Parts Parameters:with dampingRated Voltage [V]: 12Operating Mode: ElectricNumber of Poles: 2SVHC: 7439-92-1; LeadTYPE: UP 30Models Applied:FORD GALAXY (WA6), 05/06 - 06/15FORD MONDEO IV (BA7), 03/07 - 01/15FORD MONDEO IV Saloon (BA7), 03/07 - 01/15FORD MONDEO IV Turnier (BA7), 03/07 - 01/15FORD MONDEO IV Van, 03/07 - 01/15FORD S-MAX (WA6), 05/06 - 12/14Condition: Brand new Aftermarket high quality partFeatures: Customized order is available , based on drawings/samples.
Why is Electric Vacuum Pump needed in brake system ?
The electrical vacuum pump is activated on demand to support the evacuation of the brake booster. The vacuum pump can provide the necessary vacuum for the brake booster in a wide range of situations when the internal combustion engine is unable to do so, e.g. during the cold start/warm-up phase, at high altitudes or when using the air-conditioning system. The pump is installed parallel to the main combustion engine and evacuates filtered air via the brake booster and flexible pneumatic hoses.
Electrical contact between the electrical brake booster pump and the ECU is made using a cable equipped with an engine compartment connector and attached to the vacuum pump.
What advantages of Electric Vacuum Pump?
• Reduction in energy requirements thanks to on-demand pump operation
• Helps to reduce CO2 emissions
• Independent of combustion engine technology
• Maintenance-free (dry running and self-lubrication requires no connection to the oil circuit)
• Electrically driven vacuum pumps support a flexible vehicle platform concept
• Optimized housing
