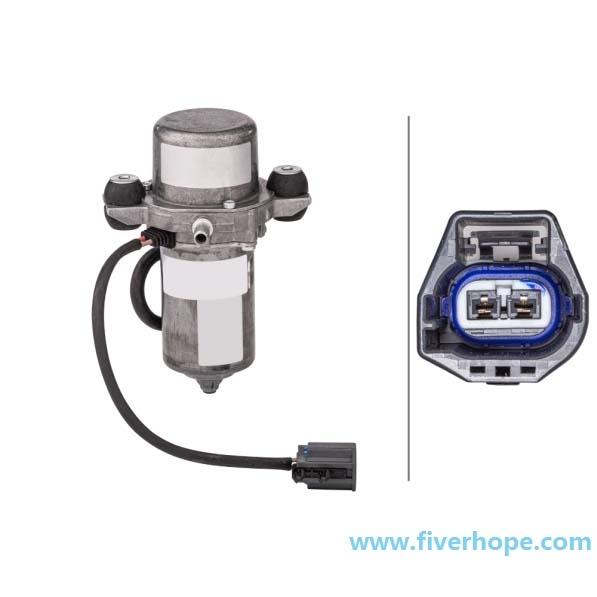

Electric Booster Pump 68239633AA 68239633AB for RAM PROMASTER 1500 Box

Part Name: Electric Brake Booster Pump, Electric Vacuum Pump assy, Booster Vacuum Pump

OEM Number: 68239633AA, 68239633AB

Refer Number: 8TG358157-041

Parts Parameters:

Rated Voltage [V]: 12

Operating Mode: Electric

Number of Poles: 2



Models Applied:

RAM PROMASTER 1500 Box (VF1), 09/13 -

RAM PROMASTER 2500 Box (VF2), 09/13 -

RAM PROMASTER 2500 Cab & Chassis, 09/13 -

RAM PROMASTER 3500 Box (VF3), 09/13 -

RAM PROMASTER 3500 Cab & Chassis (VF3), 09/13 -

RAM PROMASTER 3500 Cutaway Van (VF3), 09/13 -

RAM PROMASTER 3500 Extended Cargo Van, 08/16 -



Condition: Brand new Aftermarket high quality part

Features: Customized order is available , based on drawings/samples.


Why is Electric Vacuum Pump needed in brake system ?
The electrical vacuum pump is activated on demand to support the evacuation of the brake booster. The vacuum pump can provide the necessary vacuum for the brake booster in a wide range of situations when the internal combustion engine is unable to do so, e.g. during the cold start/warm-up phase, at high altitudes or when using the air-conditioning system. The pump is installed parallel to the main combustion engine and evacuates filtered air via the brake booster and flexible pneumatic hoses.
Electrical contact between the electrical brake booster pump and the ECU is made using a cable equipped with an engine compartment connector and attached to the vacuum pump.

What advantages of Electric Vacuum Pump?
• Reduction in energy requirements thanks to on-demand pump operation
• Helps to reduce CO2 emissions
• Independent of combustion engine technology
• Maintenance-free (dry running and self-lubrication requires no connection to the oil circuit)
• Electrically driven vacuum pumps support a flexible vehicle platform concept
• Optimized housing
