Product description

Overview

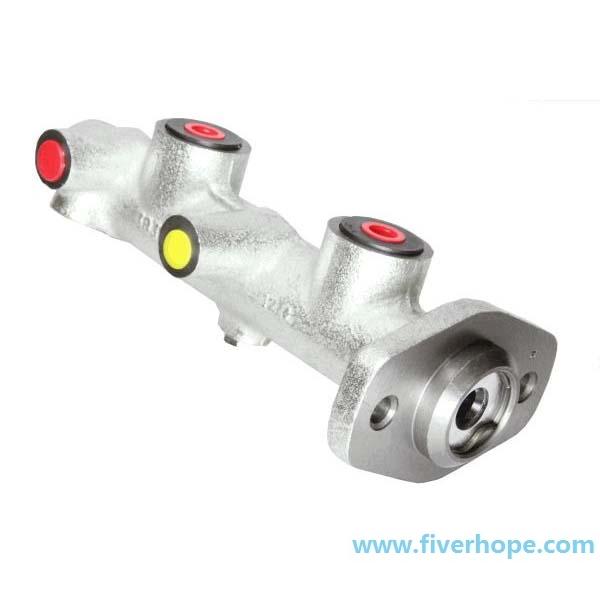

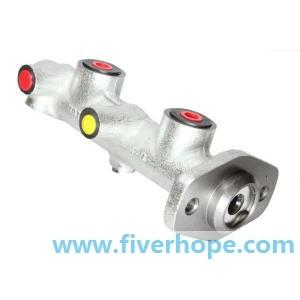

Brake Master Cylinder for FORD TRANSIT Box (T_ _), Bus (T_ _) and Platform/Chassis (T_ _) models. Part number 8AM 355 503-641.

Key specifications

SpecificationValue
Bore Ø [mm]23.81
Connecting threadM10 x 1 (x2)/M12 x 1
MaterialGrey Cast Iron
Brake SystemBENDIX

OE / reference numbers

  • 6151046
  • 86VB2A032DA

Applications

VehiclePeriod
FORD TRANSIT Box (T_ _)09/85 - 09/92
FORD TRANSIT Bus (T_ _)10/85 - 09/92
FORD TRANSIT Platform/Chassis (T_ _)10/85 - 09/92

About master cylinders

The brake master cylinder is a control device that converts non-hydraulic pressure, commonly from a driver's foot, into hydraulic pressure: it forces fluid into the tubes, and the fluid then works on the calipers. Each master cylinder is precision-engineered to match the design, function and performance of the original part on specific vehicle years, makes and models.

  • Fiver manufactures brand-new master cylinders, fully tested to OEM specification.
  • Inspection covers materials, dimensions and performance before delivery.
  • Units are brand new; the housing material is aluminium or grey cast iron.

Need a fitment check?

Send a photograph of the unit, the number on the housing and the vehicle. We will confirm the application and the price.
