Product description
Overview
- Part number: 8970181391
- Part number format: 8-97018-139-1
Applications
| Vehicle | Years | Type |
|---|---|---|
| ISUZU TBR (INDONESIA) | 1991-1996 | PICK UP |
Additional information

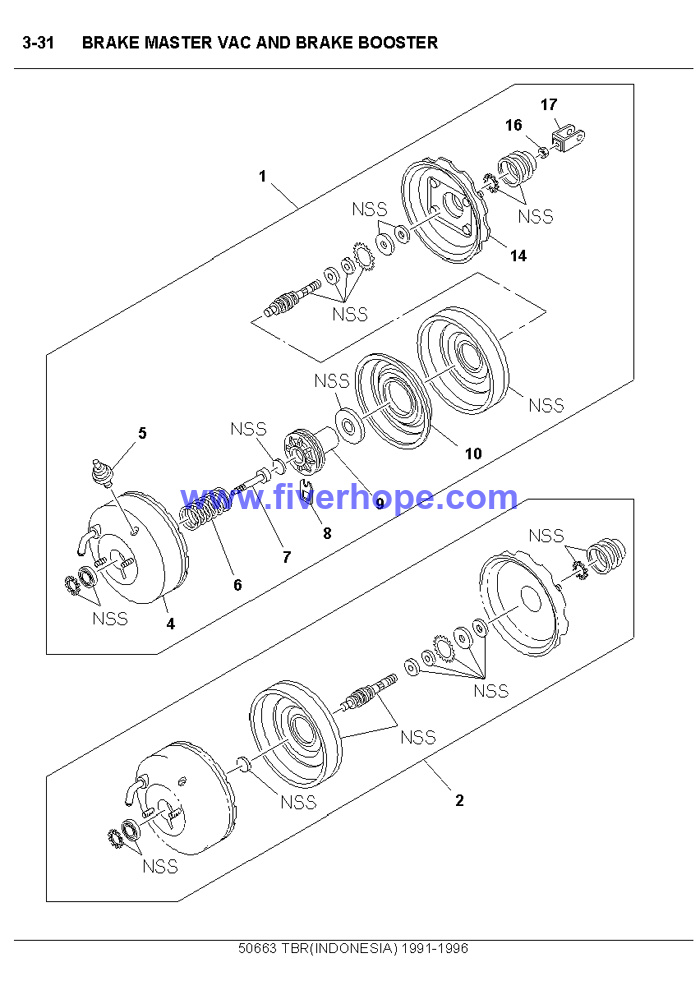

- Part name: Vacuum Brake Booster / Master VAC / Brake servo / Servo Freno / Servo Freio
- Part number: 8-97018-139-1
- Application: ISUZU TBR (INDONESIA) 1991-1996
- Application type: PICK UP
- Reference: 91-96
%201991-1996.png)
About power brake boosters
The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine's manifold vacuum. It is located between the brake pedal and the master cylinder, and increases pedal force 2 to 8 times depending on the size of the diaphragm.
When pressure is applied to the brake pedal, pressure is exerted on the booster air valve; with the pressure created by the booster, the master cylinder is applied. If the booster malfunctions, the normal mechanical braking force of the master cylinder is maintained.
- Each booster unit is vacuum tested; seals, diaphragms, a plastic hub and check valves are fitted on every unit.
- Every booster assembly is inspected and tested for fit and function, and a rust-against finishing process extends part life.
- Inspection covers materials, dimensions and performance before delivery.
- Custom design is available based on drawings or samples.
- Packing is plastic bags, a five-level carton (customer's colour box available) and a pallet.
