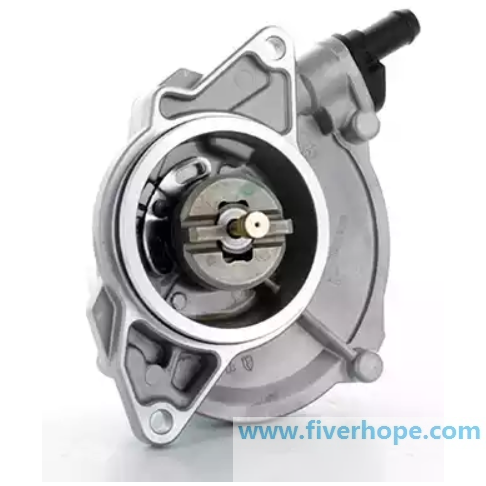

Brake booster pump 059145100K 059145100J AUDI Q7/VW TOUAREGPart Name: Brake/Alternator vacuum pump, Brake booster pump, Vacuum pump Assy
Ref. Number: 059145100K, 059145100J, 057145100AA, 057145100AC, 057145100AE, 057145100AG, 057145100F, 057145100H, 057145100J, 057145100L, 057145100T, 057145100B, 057145100, 7.00906.21.0
Models Applied:
AUDI A6(4F2.,C6) 2004-2011; AUDI A6 Allroad(4FH.,C6) 2006-2011;
AUDI A6 (4F5,C6)2005-2011; AUDI Q7(4LB) 2006-2015;
VW PHAETON (3D1,3D2,3D3,3D4,3D6,3D7,3D8,3D9) 2010-2016
VW TOUAREG(7LA,7L6,7L7) 2007-2010
Condition: Brand new Aftermarket high quality part
What is vacuum pump?Vacuum pumps are used in vehicles where the necessary vacuum cannot be generated by the intake manifold, for example, direct injection and turbo engines with variable valve timing.
The pump generates a negative pressure of between 750 and 850 mbar by drawing air out of the vacuum system. The pump works through positive displacement to move air from the vacuum system and then through the crankcase ventilation into the air intake system.
The vacuum pump is driven by the alternator rotor shaft. The Vacuum generated will be supplied to the high actuation force needed to control components such as:
- Brake boosters;
- Secondary air valves;
- Exhaust gas recirculation (EGR) valves;
- Turbocharger controls;
- Central locking systems
