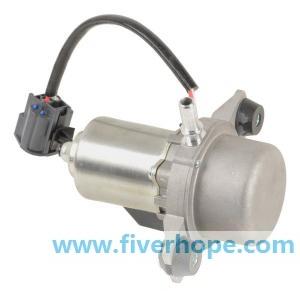

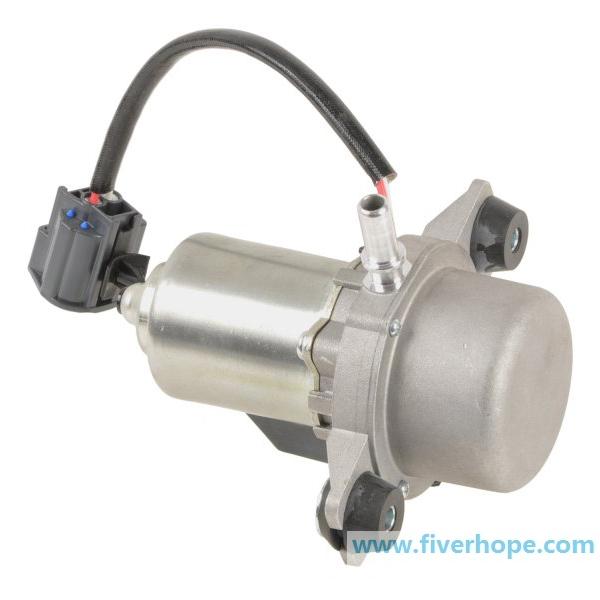

Electric Brake booster pump 5154322AA 04581484AA JEEP GRAND CHEROKEE 2011-2014

Part Name: Electric Brake booster pump, Electric Vacuum pump Assy,
Ref. Number:  5154322AA, 04581484AA, 04581484AB, 04581484AC, 04581485AD, 05154322AA, 05154322AB

Models Applied:

CHRYSLER 200 2011-2014
CHRYSLER 300 2011-2014
CHRYSLER TOWN & COUNTRY 2011-2014
DODGE AVENGER 2011-2014
DODGE CHALLENGER 2011-2014
DODGE CHARGER 2011-2015
DODGE DURANGO 2011-2014
DODGE GRAND CARAVAN 2011-2014
DODGE JOURNEY 2011-2014
JEEP GRAND CHEROKEE 2011-2014
JEEP WRANGLER 2012
RAM C/V 2012-2014

Part Parameters:

Voltage 12V
Wiring Harness Length (in) 6
Wiring Harness Length (MM) 152.4
Housing Length (in) 5.4
Housing Length (MM) 137.16
Housing Width (in) 4.8
Housing Width (MM) 121.92



Condition: Brand new Aftermarket high quality part

Features: Customized order is available , based on drawings/samples.



What is Electric Vacuum Pump?  How it optimized your auto engine system?

The braking system is one of the most important systems in a vehicle.

A vacuum pump is usually required to ensure the availability of stable and effective braking power at all times.

DESCRIPTION

Until recently, the majority of brake boosters used the vacuum generated by the internal combustion engine’s intake section. With new engine technologies (e.g. hybrid vehicles, downsizing) or in specific operating conditions (e.g. during the cold start/warm-up phase, driving at extreme altitudes or when using the air-conditioning system), the vacuum produced by the engine is no longer sufficient.

Electric vacuum pumps are used to ensure the reliable operation of the brake booster.

Aside from the internal combustion engine, modern engine technologies such as those found in electric or hybrid vehicles are not able to build up vacuum pressure.

The electric vacuum pump is therefore required to generate an alternative or additional vacuum for these technologies.

This additional vacuum pump ensures compliance with the latest safety standards, while reliable running of the braking system, which operates with pneumatic brake boosters, is maintained.
