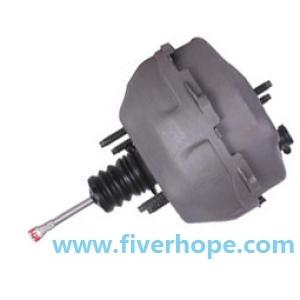

Brand New Power Booster 18008521 18010041 fits GMC S15 JIMMY 1983-1987Part Name : Booster, Vacuum Power Brake ; Master VAC Assembly
Part #. :18008521, 18010041
Conditions: Brand new, High Quality
This Part Fits:
CHEVROLET S10 BLAZER 1983-1987
CHEVROLET S10 PICKUP 1982-1987
GMC S15 JIMMY 1983-1987
GMC S15 PICKUP 1982-1987
Remarks:
Custom design is available(based on drawings or sample).
What is Brake Booster and its function in vehicle ?
The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.
When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
