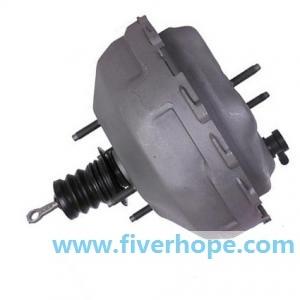

Brand New Power Booster 18008673 18016052 18016063 83500986 fits JEEP WAGONEER 1983Part Name : Booster, Vacuum Power Brake ; Master VAC Assembly
Part #. :18008673, 18008743, 18010249, 18010263, 18016052, 18016063, 83500986
Conditions: Brand new, High Quality
This Part Fits:
BUICK RIVIERA 1983-1985
CADILLAC ELDORADO 1982-1985
CADILLAC SEVILLE 1982-1985
JEEP CHEROKEE 1983
JEEP GRAND WAGONEER 1984-1991
JEEP J10 1981-1988
JEEP J20 1981-1988
JEEP WAGONEER 1983
OLDSMOBILE TORONADO 1982-1985Remarks:
Custom design is available(based on drawings or sample).
What is Brake Booster and its function in vehicle ?
The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.
When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
