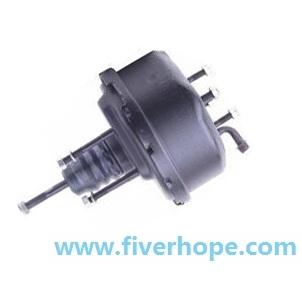

Booster Vacuum Power Brake 47210U9500 fits NISSAN 200SX 1977-1979Part Name : Booster, Vacuum Power Brake ; Master VAC Assembly
Part #. :47210-U9500
Conditions: Brand new, High Quality
This Part Fits:
NISSAN 200SX 1977-1979
NISSAN 610 1975-1976
NISSAN 710 1976-1977Remarks:
Custom design is available(based on drawings or sample).
What is Brake Booster and its function in vehicle ?
The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.
When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
