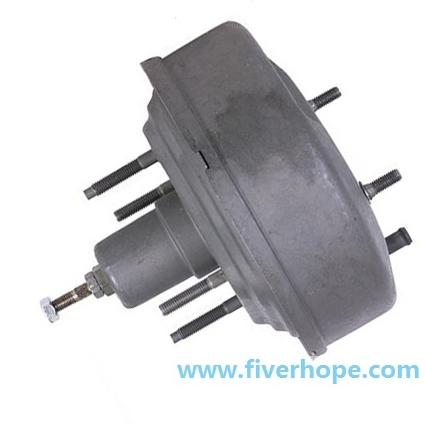

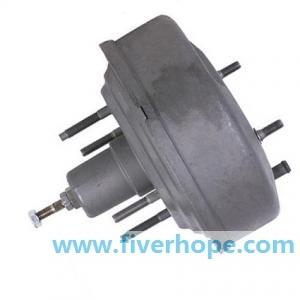

Booster Vacuum Power Brake 46400SB2003 fits HONDA CIVIC 1985 KD 4-DOORS GL 3ATPart Name : Booster, Vacuum Power Brake ; Master VAC Assembly
Part #. :46400-SB2-003
Conditions: Brand new, High Quality
This Part Fits:
HONDA CIVIC 1985 KD 4-DOORS GL 3AT
Remarks:
Custom design is available(based on drawings or sample).
What is Brake Booster and its function in vehicle ?
The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.
When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
