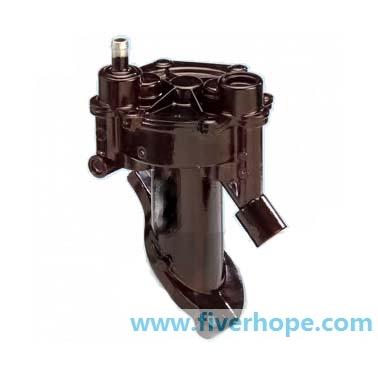

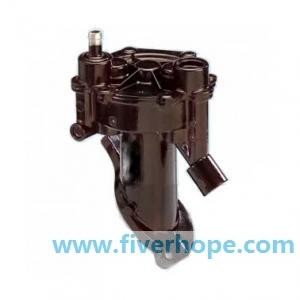

Vacuum Pump 93BB2A451AC 93BB2A451AA for FORD SIERRA(GBG)198701-199302

Part Name: Booster Vacuum Pump

OEM Number: 93BB2A451AC,  93BB2A451AA,  93BB2A451AB,  93BB2A451AD,  1119420,  1665371,  1882889,  6900150,  SWAG,  50922704

Operating Mode: Mechanical

Models Applied:

FORD SIERRA (GBG, GB4)198701-199302

FORD SIERRA Hatchback (GBC, GBG)198701-199303

FORD FIESTA Mk III (GFJ)198901-199701

FORD COURIER Box (F3L, F5L)199107-199602

FORD ESCORT Mk V (GAL)199007-199212

FORD ORION Mk III (GAL)199007-199410

FORD ESCORT Mk VI (GAL)199209-199501

FORD SIERRA Estate (BNG)198701-199302

FORD ESCORT Mk V Estate (GAL, AVL)199007-199212

FORD ESCORT Mk VI Estate (GAL)199209-199501

FORD ESCORT Mk VII (GAL, AAL, ABL)199501-199810

FORD ESCORT Mk VII Saloon (GAL, AFL)199501-199902

FORD ESCORT Mk VII Estate (GAL, ANL)199501-199902

FORD FIESTA Mk IV (JA_, JB_)199508-200201

FORD ESCORT Mk VII Convertible (ALL)199502-200008

FORD COURIER Box (J5_, J3_)199602-/

FORD MONDEO Mk II (BAP)199609-200011

FORD MONDEO Mk II Saloon (BFP)199609-200011

FORD MONDEO Mk II Estate (BNP)199609-200011

FORD ESCORT '91 Courrier (AVL)199007-199412

FORD ESCORT '95 Box (AVL)199501-/

FORD FOCUS (DAW, DBW)199810-200411

FORD FOCUS Saloon (DFW)199902-200503

FORD FOCUS Clipper (DNW)199902-200411

FORD FIESTA Box (FVD)198303-199512

FORD COURIER Box (JV_)199805-/

FORD ESCORT Mk VI Saloon (GAL)199308-199501

FORD P 100 Mk II198710-199212

FORD ESCORT CLASSIC (AAL, ABL)199810-200007

FORD ESCORT CLASSIC Turnier (ANL)199902-200007

FORD TRANSIT CONNECT (P65_, P70_, P80_)200206-/

FORD FOCUS C-MAX200310-200703

FORD FOCUS II Saloon (DA_)200504-/

FORD GALAXY200605-/

FORD S-MAX200605-/

FORD MONDEO IV200703-/

FORD MONDEO IV Turnier200703-/

FORD C-MAX200702-/

FORD MONDEO IV Saloon200703-/

Condition: Brand new Aftermarket high quality part

Features: Customized order is available , based on drawings/samples.


What is Vacuum Pump?
The brake booster vacuum pump provides the vacuum needed for the power brake booster to perform. If it fails or has a problem, the car will be left without  assisted braking. Without the brake booster, the brake pedal will be stiff and will require more effort to stop the car. Vacuum  boosters  will probably be with us for a long time. It is the most efficient and economical way to amplify the force exerted by the driver. But where the booster gets its vacuum. Many auto parts providers have been using vacuum pumps to power the brake booster on their vehicles. For a vacuum brake booster to work, it needs a source of vacuum. In the past all that was needed was a port on the intake manifold. Now, vacuum pumps are the choice for negative pressure power.



Why must be a Vacuum Pump?

Vacuum pumps have been used on diesel engines for  more than 40 years, typically as a diaphragm pump. These pumps were neither efficient nor reliable.Most modern European cars use either an electric vacuum pump or a pump driven by a sprocke.In every piston engine, vacuum is created during the intake stroke as the piston goes down in the cylinder and the intake valves are open. But modern engines have  changed. Increased efficiency has reduced the amount of vacuum available to the brake booster. Engines have been downsized to 2.0- and even 1.4-liters. This means that  there is less displacement to create the vacuum. Variable valve timing has further diminished the vacuum generated because the timing of the opening might be timed  to allow a scavenging effect so some of the intake air makes it past the exhaust valve. This air is intended for the catalyst so unburned hydrocarbons can be burned. Turbocharging has also eliminated traditional vacuum in the intake manifold. The turbocharger produces positive pressure or boost in the intake manifold. The only time  an engine might be under vacuum is when the engine is decelerating, and the throttle is closed.



FIVER's Advantages on Vacuum Pump:

◆ As OE supplier, we practice with very strict quality control, follow the TS16949 strictly.

◆ With 3 years long term quality warranty.

◆ Custom design, new developing based on customer request is available.
